100100 Large Size High Resolution X Ray Security Scanner Load Capacity 250 Kg

Brand Name : ZL

Model Number : ZL-4005

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,T/T,Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : 100100 Large Size High Resolution X-Ray Security Scanner With Load Capacity 250 Kg is packaged within wooden case.

Product name : 100100 Large Size High Resolution X-Ray Security Scanner With Load Capacity 250 Kg

Conveyor speed : 0.22 m seconds.

Penetration : 34mm steel plate

Line resolution : Φ = 0.0787mm, wire

Conveyor height : 345mm

Channel size : 1000 (W) x 1000 (H) mm

Noise : ≤58dB

Key words : 100100 Large Size

Contact Now

Large Size High Resolution X-Ray Security Scanner

Model 100100 with 250 kg load capacity - professional security screening solution for high-throughput environments.

Advanced Imaging Functions

Multiple image processing modes: color, black and white, local enhancement
Advanced enhancement features: high wear, low wear, super increase
Material discrimination: organic rejection, inorganic removal
Visual optimization: reverse color, highlighting, darkening, gray sweeping
Analysis tools: magnification, pseudo-color, edge enhancement
Security features: suspicious object alarm mark, precise positioning

Comprehensive System Functions

Power-on self-test function and multi-level user management
Advanced image management with multi-format export capabilities
OSD operation function with image mirroring
1-64 times stepless amplification for detailed inspection
Operator training mode and remote operation software
Curve diagnosis and equipment information query

Applications & Usage Scope

Ideal for security screening at transportation hubs, government facilities, and public venues including:

Bus stations, railway stations, and high-speed rail stations
Airports, customs, and government agencies
Embassies, convention centers, and courts
Tourist attractions, sports venues, and post offices
Express delivery companies and manufacturing facilities
Hotels, schools, and various security inspection points

Technical Specifications

Conveyor Speed	0.22 m/s
Maximum Load Capacity	250 kg
Penetration Capability	34 mm steel plate
Line Resolution	Φ = 0.0787 mm wire
Penetration Resolution	Φ = 0.127 mm wire
Spatial Resolution	Horizontal: Φ1.0 mm, Vertical: Φ1.0 mm
Noise Level	≤ 58 dB

X-Ray Generator Specifications

Tube Voltage	160 KV (default), customizable to customer requirements
Tube Current	0.2 ~ 0.6 mA
Cooling / Working Time	Cooling with sealing oil / 100% duty cycle
Beam Direction	Divergence angle from bottom diagonal (60°)

Radiation Safety Features

Single Dose	Less than 1 μGy (microsievert)
Leakage Radiation Dose Rate	Less than 0.35 μGy (tested 5 cm from device surface)
Radiation Protection	Double-layer staggered, wear-resistant lead curtain with 2-5 mm lead plate
Film Safety	Safe for SO1600 film

Installation & Physical Parameters

Channel Size	1000 mm (W) * 1000 mm (H)
Conveyor Height	345 mm
Product Size	3781 mm (L) * 1290 mm (W) * 1810 mm (H)
Packaging Size	2140 mm (L) * 1350 mm (W) * 1830 mm (H)
Net Weight	1000 kg
Gross Weight	1100 kg
Display	Standard 19-inch (16:10 / 1440*900) display
Keyboard	PC keyboard, optional industrial keyboard
Operating Temperature	-20°C to +60°C
Operating Humidity	5% to 95% (non-condensing)
Storage Temperature	-30°C to +70°C
Working Voltage	110-240 VAC (-10% to +20%) 50/60±3 Hz

Power & Certification

Power Consumption	< 1.0 kW/h
Certification	Complies with IEC electrical safety standards and CE requirements (EMC/LVD/ROHS)

100100 Large Size High Resolution X Ray Security Scanner Load Capacity 250 Kg

Product Tags:

345mm X Ray Security Scanner

58dB X Ray Security Scanner

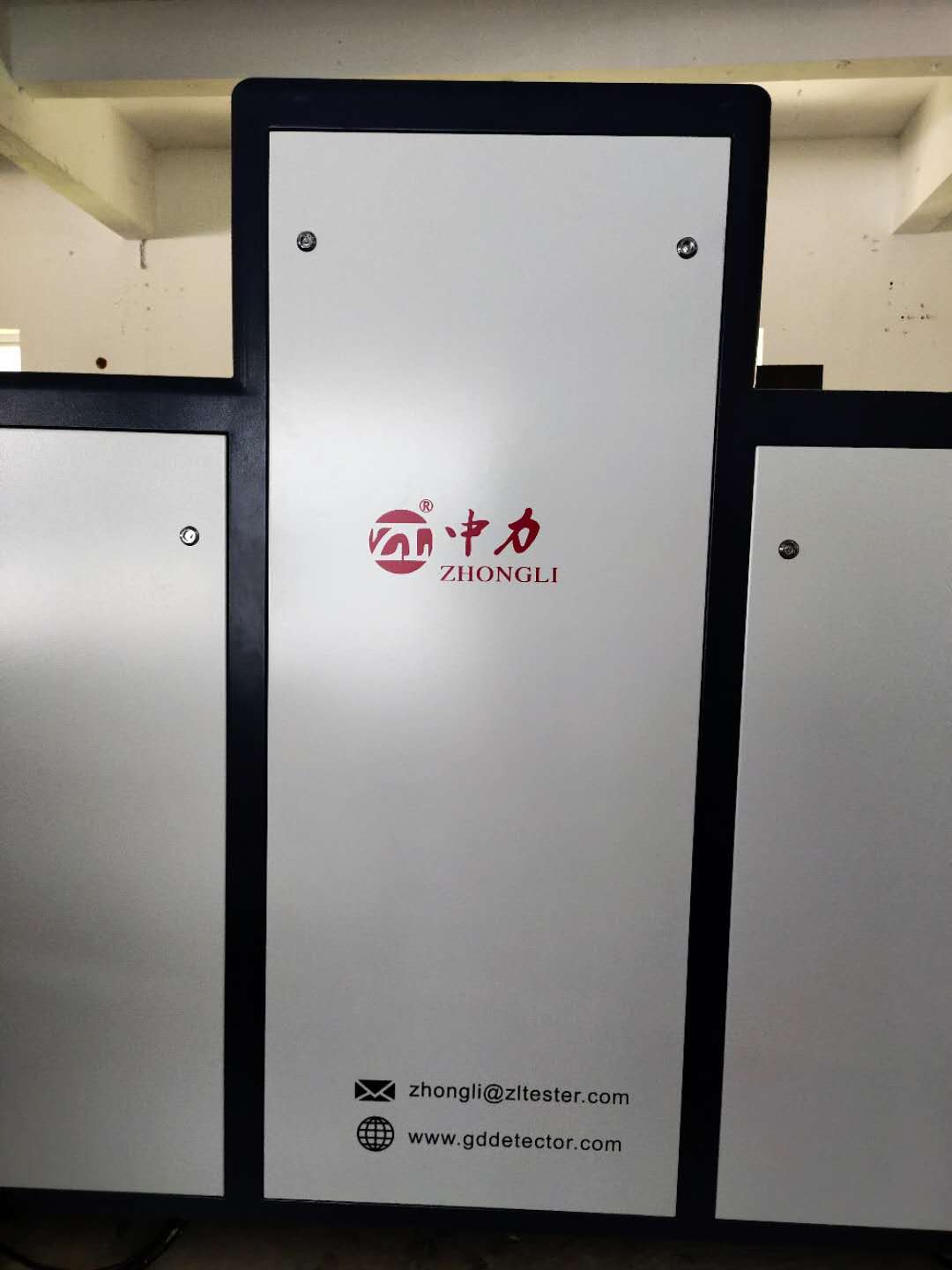

100100 Large Size High Resolution X Ray Security Scanner Load Capacity 250 Kg Images
