Fully Automatic Dental Floss Injection Moulding Machine Vertical Mould Clamping
Features:
Vertical mould clamping / vertical injection moulding , 4-section temperature control, and stepless adjustments for injection pressure / injection speed / black pressure.
Reliable automation driven by famous brand cylinders such as Airtac and SMC, can pull the dental lines, cut the dental floss, and separate the runner automatically.

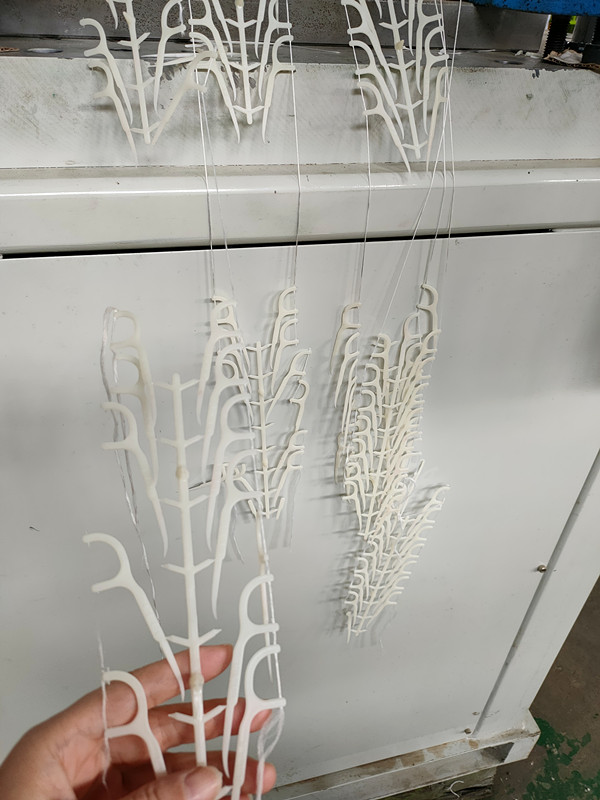

Suckers take the dental floss and drop down on collecting sticks neatly, which is easy to take out for packing , When the collected dental floss reaches the set quantity, tips on controller screen will remind you to shift the empty collecting sticks.
There are two solutions, first one can make to 16 floss per cycle, while the other one can make up to 60 floss per cycle.
zl-3059 vertical injection moulding machine.pdf
Related Machine:
1.Banbury Mixer 2.Vulcanizing Press Machine
3.Rubber Mixing Mill 4.Three-Roll Grinding Mill
5.Moving Die Rheometer 6.Twin-Screw Extruder
Technical parameters:
| Type | Model | Unit | ZL-550-P | ZL-850-P |
| Injection system | Screw diameter | mm | 30 | 36 | 36 | 42 |
| | Injection pressure | Kg/cm² | 2177 | 1513 | 2177 | 1600 |
| | Theoretical shot volume | Cm³ | 98 | 142 | 163 | 222 |
| | Max.injection weight(PS) | G/oz | 87/3.0 | 160/5.6 | 145/5.2 | 198/7.2 |
| | Injection rate | Cm³/sec | 68 | 97 | 127 | 175 |
| | Screw stroke | mm | 140 | 160 |
| | Max.screw speed | RPM | 0-210 | 0-180 |
| | Nozzle retraction stroke | mm | 220 | 300 |
| Clamping System | Clamping Force | Tons | 55 | 85 |
| | Opening Force | Tons | 7.2 | 8 |
| | Platen Size | mm | 690*450 | 840*640 |
| | Min. Mold Thickness | mm | 180/240 | 250/310 |
| | Opening Stroke | mm | 200 | 250 |
| | Max. Open Daylight | mm | 380/440 | 500/560 |
| | Max. die size | mm | 450*440 | 500*480 |
| | Ejector Force | Tons | 1.3 | 2.2 |
| Oil Power System | Max. Hydraulic Pressure | Kg/cm²(mPa) | 140 | 140 |
| | Pump Output | L/min | 57 | 59 |
| | Oil Reservoir Capacity | L | 166 | 250 |
| | Cooling Water Consumption | /hr | 600-800 | 800-1000 |
| | Motor Power | KW | 7.5 | 11 |
| | Electrothermal Capacity | KW | 2.8 | 6.7 |
| Others | Machine Weight | Tons | 2500 | 3500 |
| | Machine Dimensions L*W*H | M | 2.9*2.35*3.6 | 3.2*2.55*4.1 |
