Sensitivity 10 Level Adjustable Metal Detector For Food Industry
ZL-4001A food metal detector with touch screen interface, 10-level adjustable sensitivity, and memory for 10 product types. Features enhanced reliability and stability for products containing water and salt.
Applications
Detection of meat, frozen meat, seafood, mushrooms, beverages, fruits, sugar, salt, and vegetables.
Key Features
- Large LCD display with Chinese & English language options
- Phase-adapted technology to eliminate product effect
- Balance theory design for enhanced reliability
- DSP and Microprocessor combination for efficient signal processing
- Advanced error prevention in transmission & reception
- Stainless steel construction with IP65 waterproof rating and HACCP certification
- Self-learning function for automatic product feature storage
- Storage capacity for over 100 product testing datasets
- Customizable automatic rejection system
Detection Performance Specifications
| Detected Height (mm) |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
| Belt Width (mm) |
250 |
250 |
400 |
400 |
400 |
400 |
400 |
| Fe Sensitivity (mm) |
0.8 |
1.0 |
1.2 |
1.5 |
2.0 |
2.5 |
3.0 |
| SUS Sensitivity (mm) |
1.0 |
2.0 |
2.5 |
2.5 |
3.0 |
3.5 |
4.0 |
| N-Fe Sensitivity (mm) |
1.0 |
1.5 |
2.0 |
2.0 |
2.5 |
3.0 |
3.5 |
Operational Parameters
Belt Length: 1500mm
Belt Speed: 25M/min (Fixed) or 5-40 M/min (Adjustable)
Load Capacity: 20KG
Count: 100
Warning Method: Sound and light alarm
Rejection Method: Belt continues with product rejection
Application: Non-packaged, plastic, paper bag or non-metallic box products
Work Environment: -10℃ to 40℃, 30-90% humidity
Technical Specifications
Detection Width: 30-80 cm (Customizable)
Detection Height: 8-50 cm (Customizable)
Power: 100-265VAC, 50-60Hz

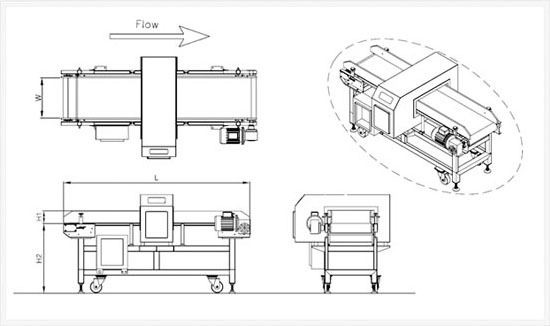

Size: 150-170cm(L) * 80-90cm(W) * 85-120cm(H)
Reject System: Optional
